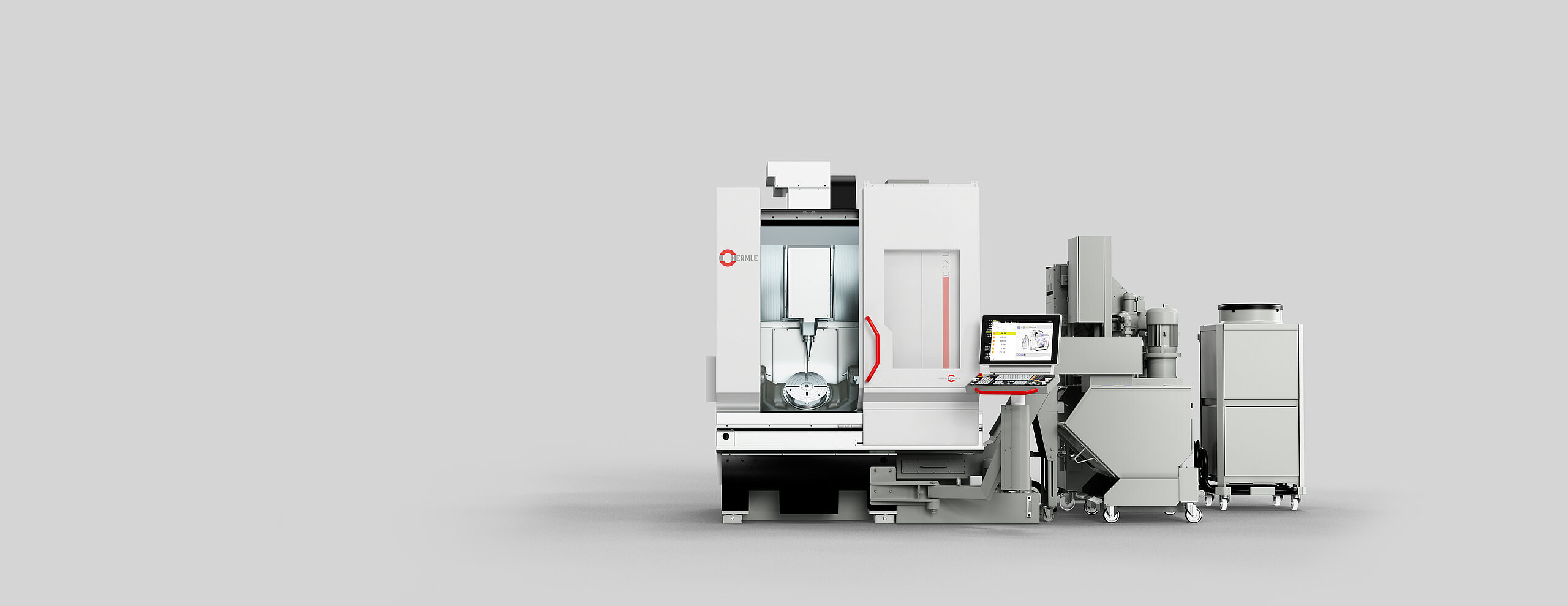

Machining centre C 12

Maximum efficiency combined with a small footprint: The C 12 is the most compact HERMLE machining centre in the High-Performance Line.

Designed for machining cubic parts up to 100 kg and is more than a match for larger models. The right speed is available for practically every application. The especially compact and space-saving C 12 machining centre meets the ever increasing demands placed on speed and precision thanks to the corresponding HERMLE setups. It goes without saying that there are also many options available for more complex applications.

From the comprehensive fluid technology to the optimised chip management system and a wide range of cooling lubricant units: The entry-level model of the High-Performance Line has a number of highlights to offer, e.g. the right chip disposal equipment for removing all types of chip from the working area. The especially compact and space-saving machining centre can be transported without being dismantled and set up without a foundation.

Energy efficiency in manufacturing and operation

HERMLE manufactures many components using lightweight construction and mineral casting technology. The high degree of own production, local suppliers and components with high efficiency factors also promote energy efficiency. Energy recuperation, high-quality servo drives and the legendary long service lives are all proof of the same high standards during actual operation.

Technical Data

Dimensions

  • Traverse path:  350 x 440 x 330 mm
  • Body:  Ø 320 / H 265 mm
  • Collision circle:  Ø 610 mm
  • Vertical table clearance:  max. 430 mm

Facts

  • Rotational speed: 12000/15000/18000/25000/30000/42000 1/min
  • Rapid traverse linear X-Y-Z : 30 (50) m/min.
  • Swivelling rotary table: ø 320 mm
  • Max. table loading: 100 kg

Applications

C 12 | Model making | Space mouse

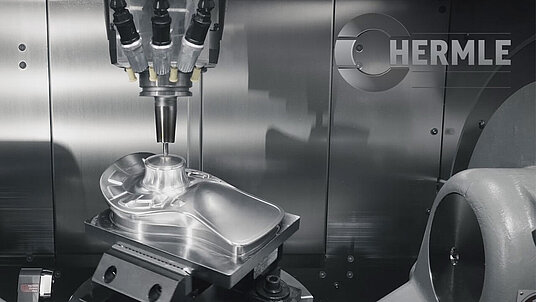

HERMLE C 12 U dynamic in 5-axis version, machining a space mouse in AlMg4.5Mn0.7 for model making, perfect surface finish / centre roughness Ra 0.035 µm and roughness depth Rz 0.2 µm / diamond-coated tools

Click the “Activate” link to view the contents.
Please note that data is transmitted to YouTube after activation.
More information

C 12 | Sports and leisure industry | Saw handle

HERMLE C 12 U dynamic in 5-axis version, machining a saw handle in AlMgSi1 for model making

Click the “Activate” link to view the contents.
Please note that data is transmitted to YouTube after activation.
More information

C 12 | Tool technology | HSS milling tool

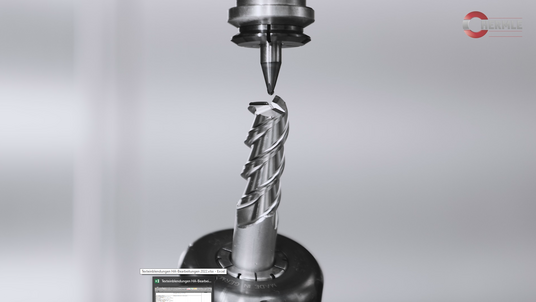

HERMLE C 12 U dynamic in 5-axis version, machining an HSS milling tool in 1.3343 in HRC 60 for tool technology

Click the “Activate” link to view the contents.
Please note that data is transmitted to YouTube after activation.
More information

Options

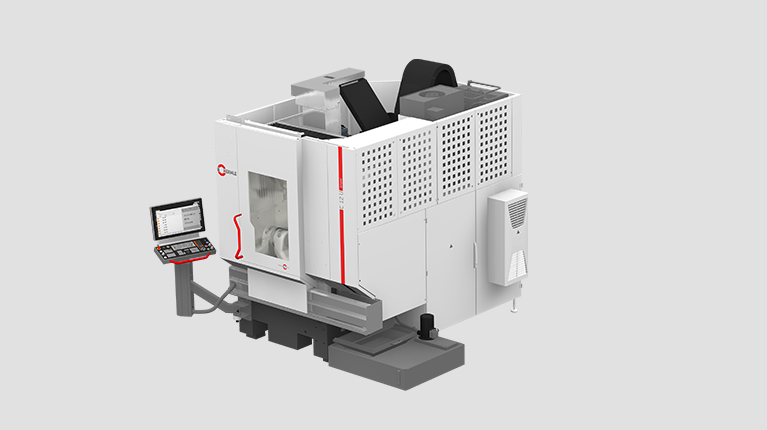

  • Chip slide

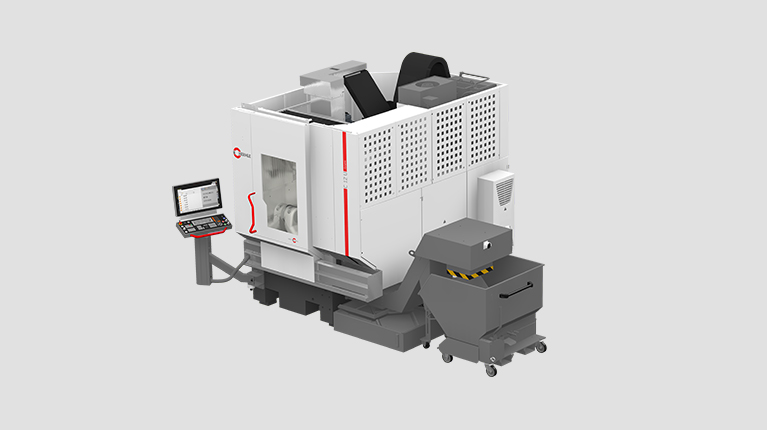

  • Chip conveyor

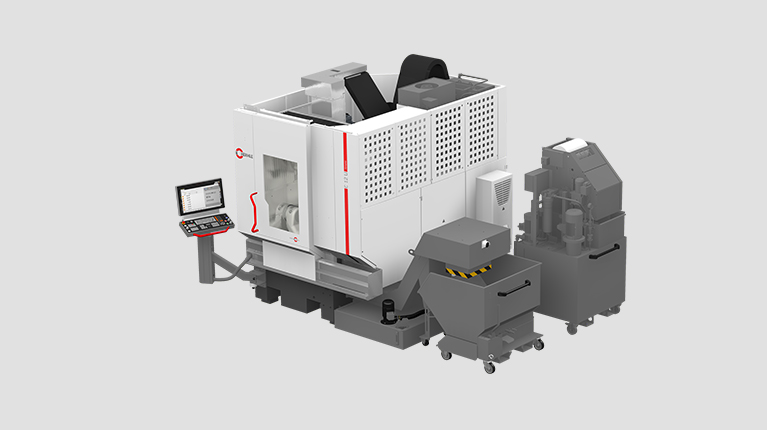

  • Chip conveyor with internal cooling lubricant supply ICS 40

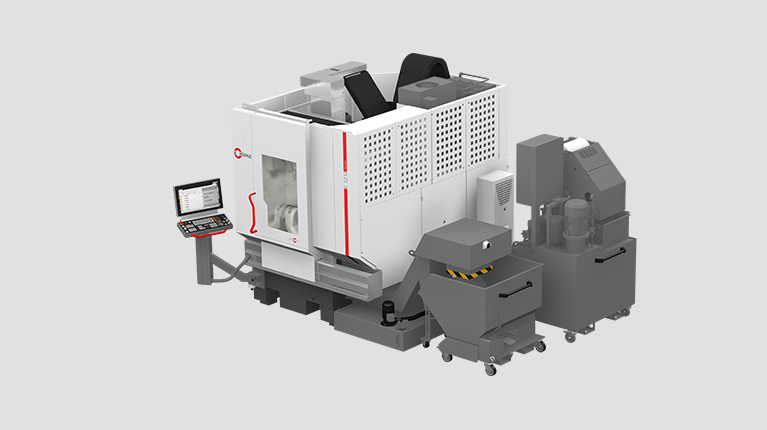

  • Chip conveyor with internal cooling lubricant supply ICS 80

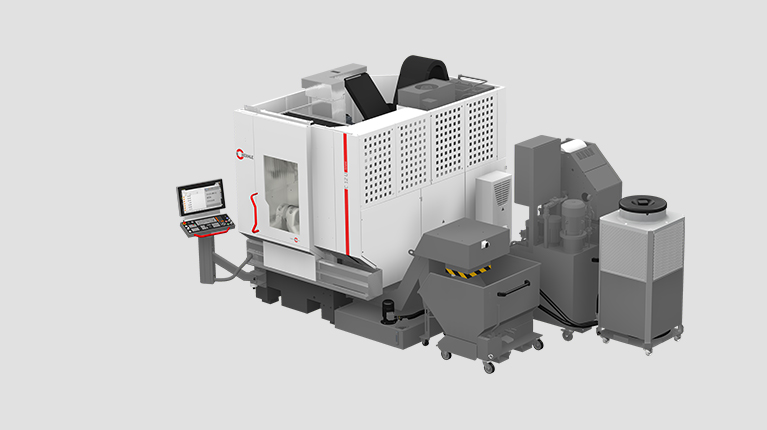

  • Chip conveyor with internal cooling lubricant supply ICS 80 and temperature controller

Countless options. HERMLE machining centre C 12 completely individual.

HERMLE offers you a wide range of options so that you can adapt the equipment of your HERMLE machining centre to your individual requirements.

It goes without saying that you will receive perfectly integrated systems and additions in which all elements are dovetailed, without friction or interface losses. Here are a few highlights:

Automation

Robot system, pallet changer and handling system

The C 12 compact machining centre, entry-level model in the HERMLE High-Performance Line, already comes with a high level of automation. For instance, the RS 05-2 robot system, the HS flex and the PW 100 pallet changer can all be connected to it.

If required, the control tools HACS (“HERMLE Automation Control System”) and HIMS (“HERMLE Information Management System”) can be used to facilitate operation.

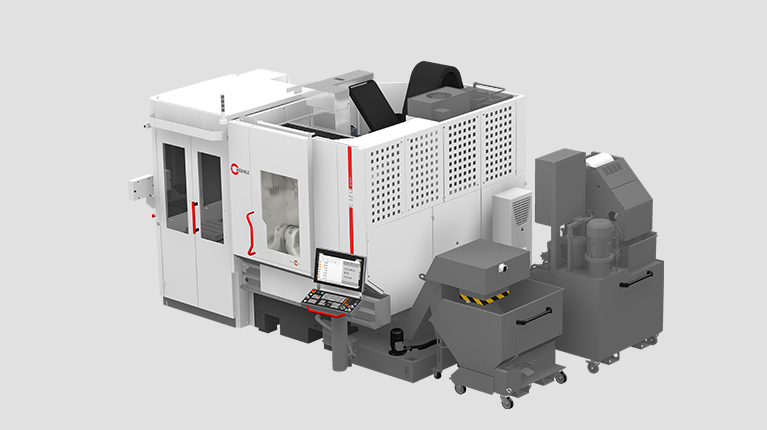

  • Robot system RS05-2

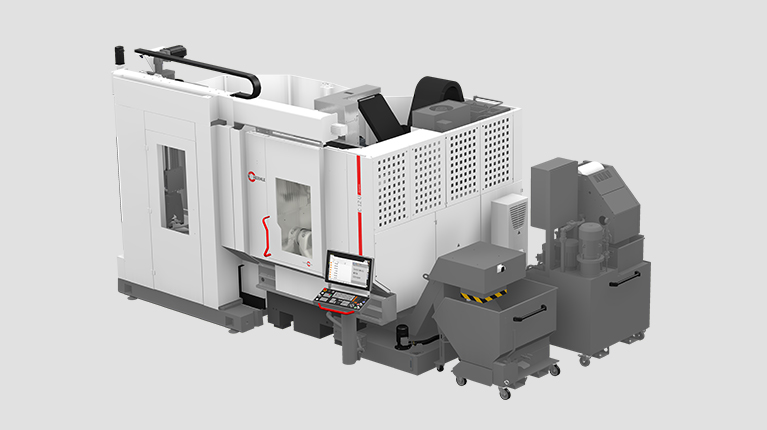

  • Pallet changer PW 100

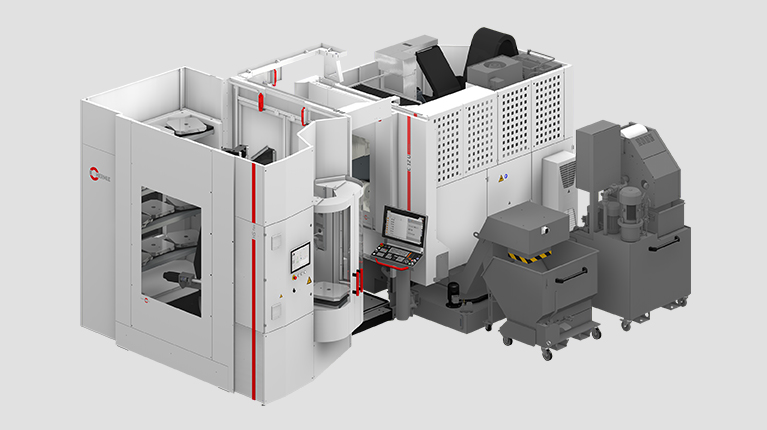

  • Handling system HS flex

Control

  • C 12 Steuerung Bedienpult Heidenhain TNC 640 / TNC7

Heidenhain TNC 640 / TNC7

The control unit provides diverse program functions. HERMLE simplifies programming and operation still further with comprehensive extra features.

Already included as standard:

HERMLE Navigator – the graphical user interface for intuitive operation
HERMLE machining setups – heavy-duty machining cycle, production cycle, 3D contour tolerance and 3D contour smoothing cycle
HERMLE controller parameters – especially for the Heidenhain control units – AFC, ACC, trochoidal milling, CTC, AVD, LAC

User reports

S&S Werkzeugbau - MPA

Cooler thanks to copper in the core

S&S Werkzeugbau GmbH
Spritzgusstechnik
Tool and mold making

S&S Werkzeugbau manufactures complete injection moulds entirely in-house – from design through to the initial moulding. However, the mould makers make an exception in the case of a reliable cooling solution for narrow cross-sections: Hermle Maschinenbau uses metal-powder application technology (MPA) to integrate copper into mould cores, thereby optimising heat outflow in the injection moulding process.

Prokutec-Geschäftsführer Michael Beyer

Twins for greater planning freedom

Prokutec
Metal products

These days, Prokutec is a successful metalworking specialist that provides a full range of services for all types of machining. "Our flexibility is our advantage", emphasises Managing Director Michael Beyer. A reliable stock of machinery with automation gives him the necessary capacity. This also includes two identical type C 22 U 5-axis machining centres as well as a C 12 U machine from Hermle.

Mitarbeiter der SK TECHNOLOGY

Accurate to the nearest hair is not precise enough

SK Technology
Prototyping

SK TECHNOLOGY is formidable when it comes to precision. That’s the result of an awareness that minute subtleties are the difference between acceptance and rejection – and a stock of machinery that can withstand critical inspection down to the micrometre range. This is where Hermle succeeds. Six automated 5-axis machining centres allow the cutting expert to be really picky.
