Bespoke HERMLE machining centres.

The following, almost countless, options allow you to adapt the equipment of your HERMLE machining centre to your individual needs. It goes without saying that you will receive perfectly integrated systems and additions in which all elements are dovetailed, without friction or interface losses.

Countless options

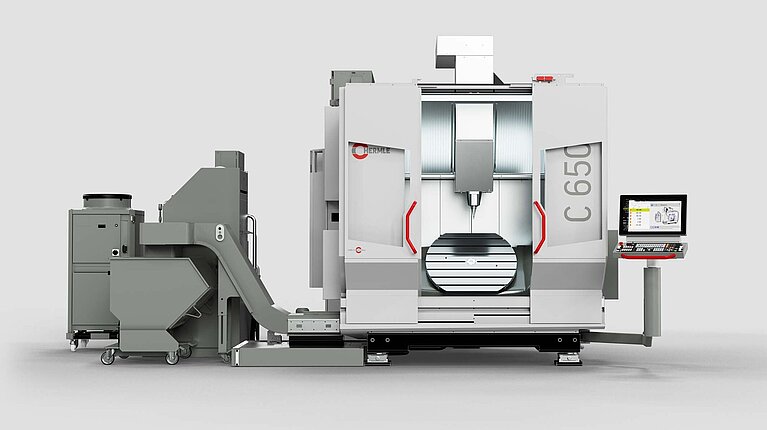

  • Optionen und Details der Hermle Bearbeitungszentren - Beispiel

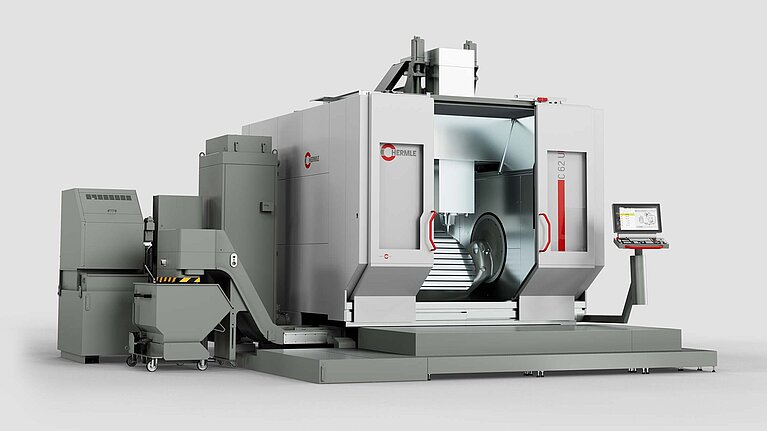

  • Tischzuladung bis 2500 kg - die C 62

Examples

  • Automatic cabin door
  • External minimum quantity lubrication
  • Collection of operating data
  • Control panel with adjustable height
  • Bed flushing
  • Internal blow air
  • Rotary feedthrough
  • Heat compensation
  • Hand-held control module
  • Emulsion mist extraction system

And even more extension options

Examples

  • Pallet changer
  • Pallet storage plus much more
  • Visibility improvement unit
  • Coolant nozzle
  • Sealing air for scales
  • Signal lamp
  • Preparation touch probe system
  • Tool breakage monitoring/measuring system
  • Additional magazines

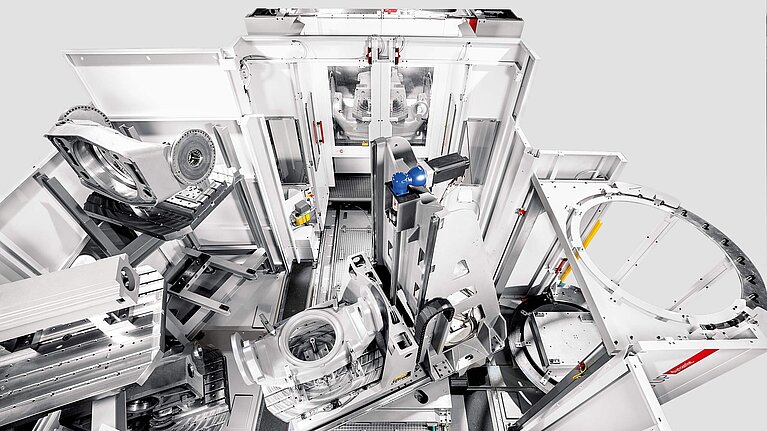

  • Die C 62 U mit PW 3000 von HERMLE

Genuine added value

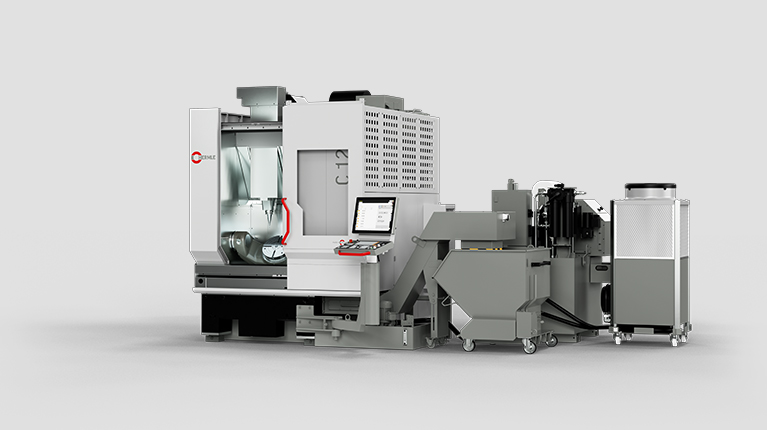

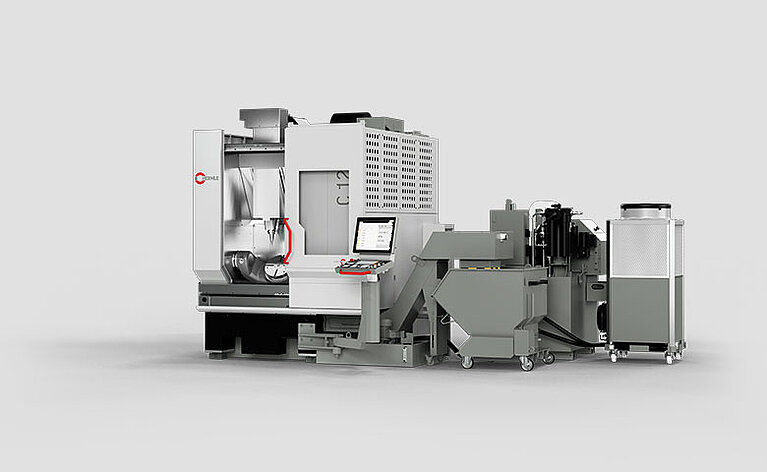

  • Die C 12 U - ein beispielhaftes Produkt der Hermle AG

Small details with a big impact.

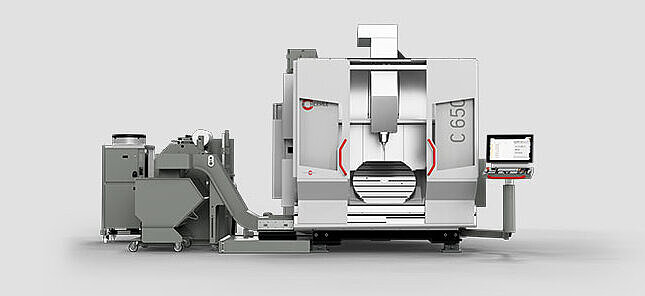

Comprehensive fluid technology, diverse coolant equipment and optimised swarf management – machining centres from HERMLE impress thanks to their intelligent details.



Coolant management

  • Space-saving setup
  • Internal cooling lubricant supply
  • Temperature controller
  • Emulsion mist extraction system
HERMLE Zusatzmagazin
Room for more Additional magazines make it possible
  • Increased productivity and system uptime
  • Especially for automated systems or complex machining operations with many tools
  • for space-optimised extension of the tool storage capacity
  • Fast adaptation and commissioning possible
  • All additional magazines can be retrofitted to a limited extent

Overview of additional magazines

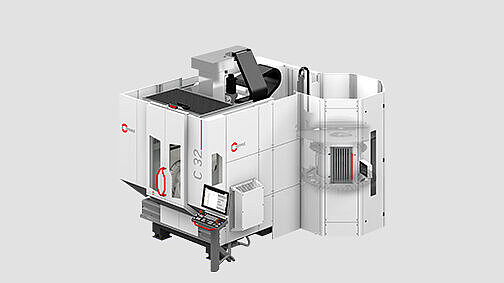

C 250 - Zusatzmagazin ZM 50 / 88 K

Additional magazine ZM 50

  • Available for C 250, C 400, C 650, C 22, C 32, C 42
  • 50 additional magazine pockets
  • Max. tool weight: 8 kg
  • Max. tool diameter Ø 80, with corresponding side pocket assignment Ø 125 mm
  • Max. tool length: 300 mm
C 400 - Zusatzmagazin ZM 50 / 88 K

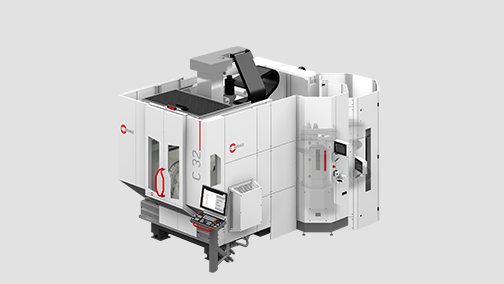

Additional magazine ZM 88 K

  • Available for C 250, C 400, C 650, C 22, C 32, C 42
  • 88 additional magazine pockets
  • Max. tool weight: 8 kg
  • Max. tool diameter Ø 80 mm, with corresponding side pocket assignment Ø 125 mm
  • Max. tool length: 300 mm
Zusatzmagazin einfach für Hermle Bearbeitungszentren

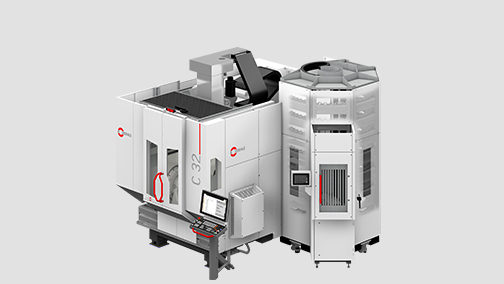

Additional magazine single

  • Available for C 250, C 400, C 650, C 22, C 32, C 42, C 52, C 62
  • Additional magazine single for up to 216 additional magazine pockets
  • Max. tool weight: 30 kg
  • Max. tool diameter Ø 250 mm
  • Max. tool length: 500 mm
Zusatzmagazin doppelt für Hermle Bearbeitungszentren

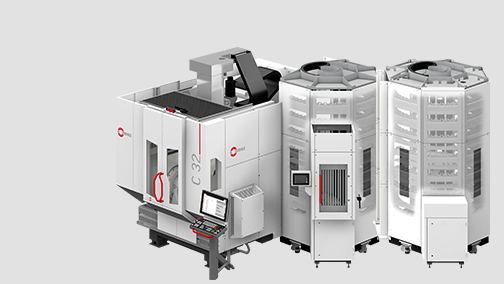

Additional magazine double

  • Available for C 650, C 22, C 32, C 42, C 52, C 62
  • Additional magazine double for up to 528 additional magazine pockets
  • Max. tool weight: 30 kg
  • Max. tool diameter Ø 250 mm
  • Max. tool length: 500 mm
For additional information, please refer to the relevant product brochures.
