Technical Data
Dimensions
-
Störkreis: Ø 770 mm
-
Verfahrweg: 600 x 550 x 450 mm
-
Maulweite: max. 550 mm
-
Körper: Ø 450 / H 355 mm
Facts
-
Rotational speed: 15000/18000 1/min
-
Rapid traverse linear X-Y-Z : 35 m/min.
-
Rigid clamping table: 800 x 616 mm
-
Max. table loading: 1100 kg
Applications
C 250 | Vehicle technology | Rocker box
HERMLE C 250 U in 5-axis version. Machining a rocker box in Toolox33 for vehicle technology
C 250 | Tool and mould making | Die mould
HERMLE C 250 in 3-axis version. Machining a forging die in 1.2767 (52 HRC) for tool and mould making
C 250 | Sports and leisure industry | Pedal for a downhill bike
HERMLE C 250 in 5-axis version. Machining a pedal for a downhill bike in AlMgSi1 for the sports and leisure industry
Options
-

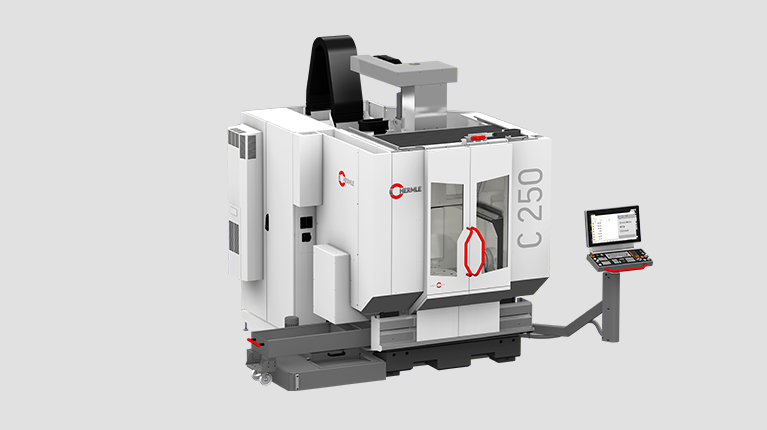

Chip drawer -

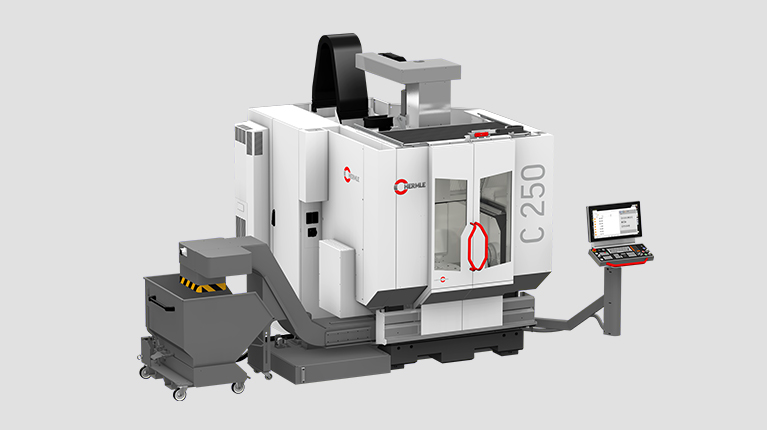

Chip conveyor -

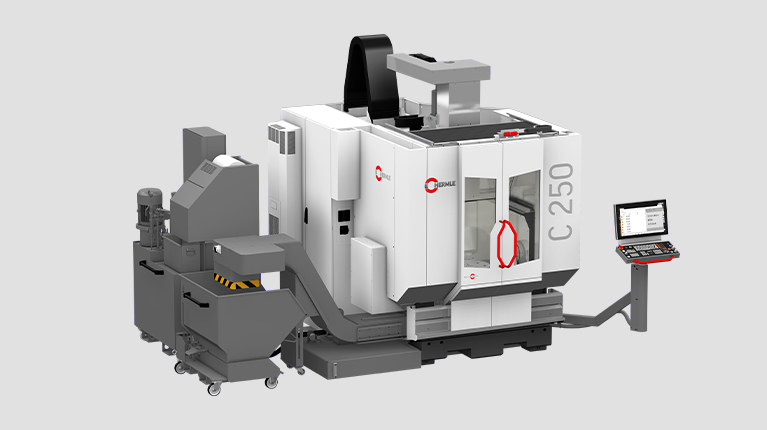

Chip conveyor with internal cooling lubricant supply ICS 80/40
HERMLE machining centre C 250 completely individual.
HERMLE offers you a wide range of options so that you can adapt the equipment of your HERMLE machining centre to your individual requirements.
It goes without saying that you will receive perfectly integrated systems and additions in which all elements are dovetailed, without friction or interface losses. Here are a few highlights:
Automation
Flexible machine state monitoring
The HIMS control tool (‘HERMLE Information Management System’) allows for flexible machine state monitoring even for the C 250 entry-level model, including a Live Messenger amongst other features.
The HERMLE High-Performance Line models can also be automated to a considerably greater degree, including the addition of pallet changers, handling, rotary loading and robot systems and pneumatic arbour holders.
-

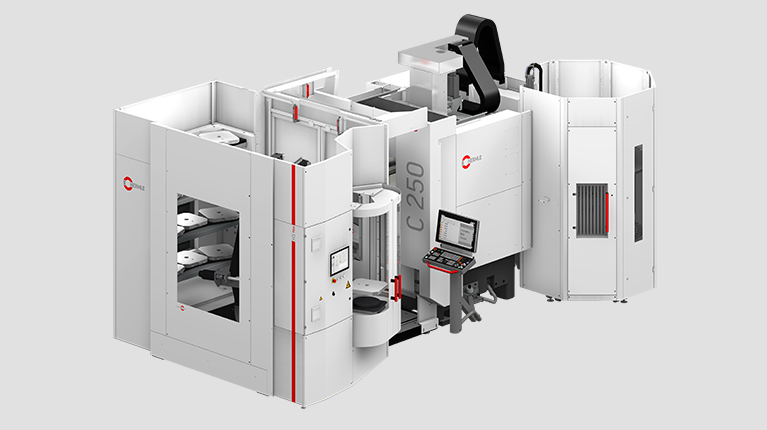

Handling system HS flex -

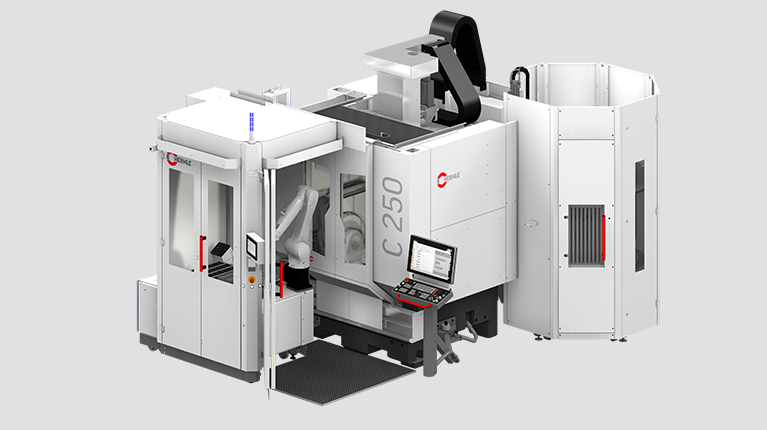

Robot system RS 05-2
Control

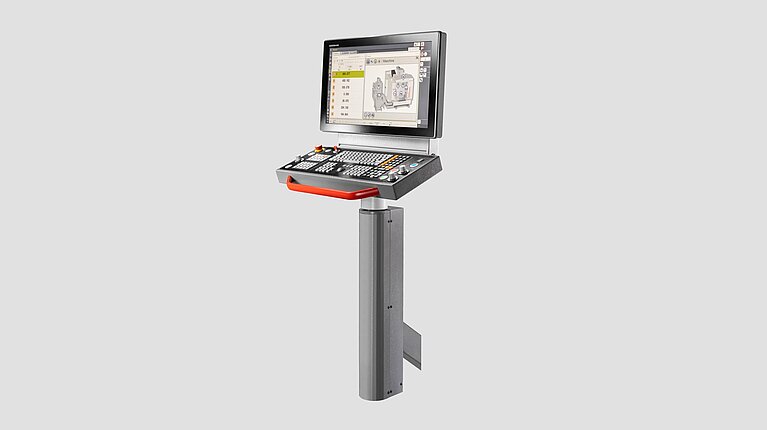

Heidenhain TNC 640 / TNC7
The control provides free contour programming and functions for fast 3D machining as well as a trackball, USB and Ethernet interfaces. Options such as Dynamic Efficiency, Dynamic Precision or the Kinematic Opt. software also serve to widen the range of functions.
Customised setups and control tools from HERMLE simplify and improve operation.
User reports
Dynamic for series production
HIN Feinmechanik GmbH
Prototyping
From draft to design through to production: HIN Feinmechanik has successfully established itself as a specialist in complicated components and complex devices. The "Made in Germany" quality seal is important to the owner – including in his stock of machinery: all six milling centres are supplied by Hermle in Gosheim.
Expanding capacity before reaching capacity
Kretzschmar & Siber
Fertigungstechnik GmbH
Contract manufacturing
"Hermle makes no distinction between large and small customers. As a rule, the service technicians are on site within 24 hours and always have a solution ready," praises Silber. The issue of competence is particularly important to him. If it is missing, there are consequences, as he sees in other companies: "Without the appropriate know-how, the best machine is of no use.
