Overview of models

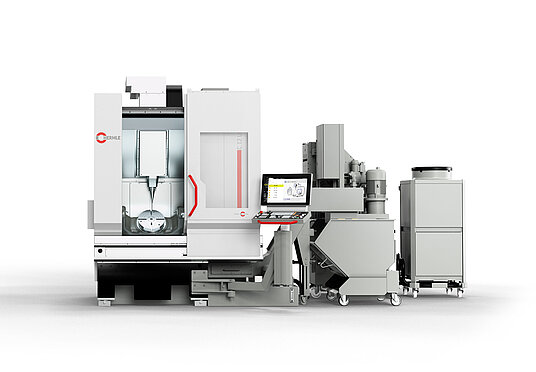

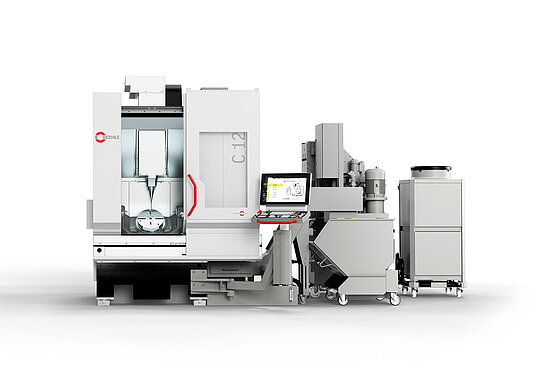

Machining centre C 12
Maximum efficiency combined with a small footprint: The C 12 is the most compact HERMLE machining centre in the High-Performance Line.
- Traverse path:350 x 440 x 330 mm
- Body:Ø 320 / H 265 mm
- Collision circle:Ø 610 mm
- Vertical table clearance:max. 430 mm

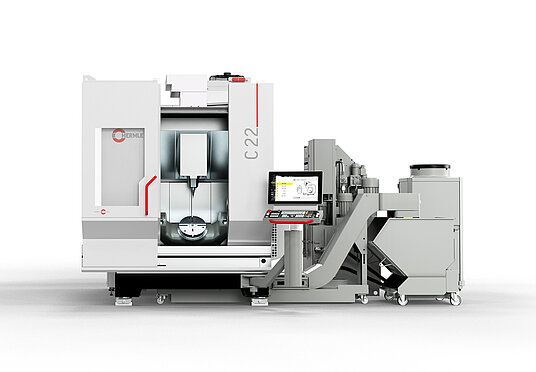

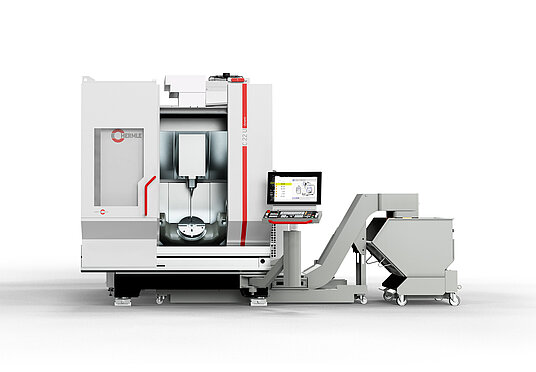

Machining centre C 22
As the C 12’s bigger brother, the C 22 High-Performance Line machining centre has the same collision circle and a huge degree of flexibility.
- Traverse path:450 x 600 x 330 mm
- Body:Ø 450 / H 370
- Collision circle:Ø 610 mm
- Vertical table clearance:max. 470 mm
Machining centre C 32
The C 32 machining centre machines workpieces weighing up to 1000 kg simultaneously in five axes: from delicate wings for model aircraft to massive bearing pedestals.
- Traverse path:650 x 650 x 500 mm
- Body:Ø 650 / H 420 mm
- Collision circle:Ø 840 mm
- Vertical table clearance:600 / 635 mm

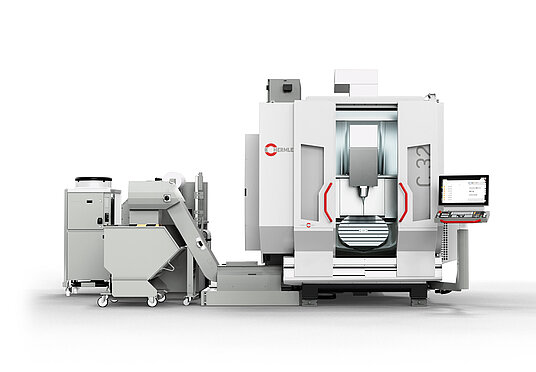

Machining centre C 32 GEN2
The C 32 GEN2 is the ongoing transition towards a new machine generation of the future.
- Traverse path:650 x 650 x 500 mm
- Body:Ø 650 / H 420 mm
- Collision circle:Ø 840 mm
- Vertical table clearance:600 / 635 mm
Machining centre C 42
The C 42 is an effective gateway into MT technology – thereby evolving seamlessly into a high-performance milling and turning centre.
- Traverse path:800 x 800 x 550 mm
- Body:Ø 800 / H 560 mm
- Collision circle:Ø 990 mm
- Vertical table clearance:max. 700 mm

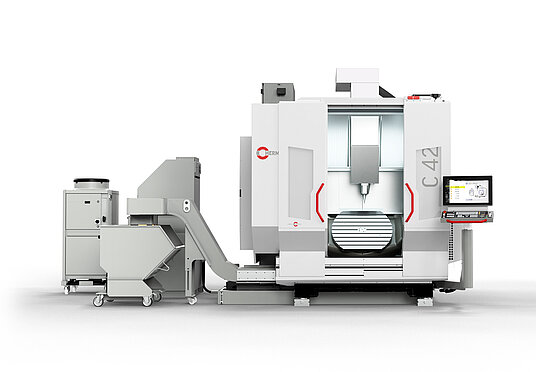

Machining centre C 42 GEN2
The C 42 GEN2 is the ongoing transition towards a new machine generation of the future.
- Traverse path:800 x 800 x 550 mm
- Body:Ø 800 / H 560 mm
- Collision circle:Ø 990 mm
- Vertical table clearance:max. 700 mm

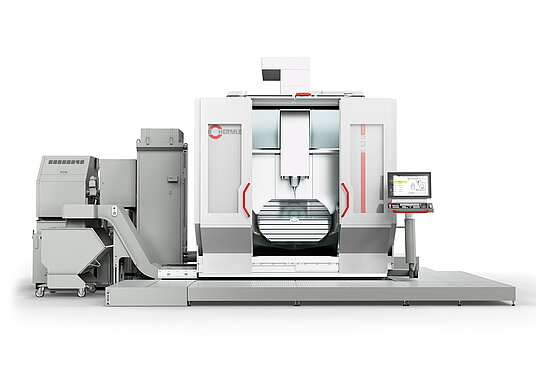

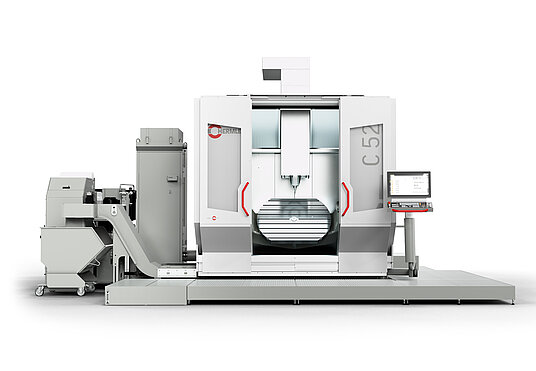

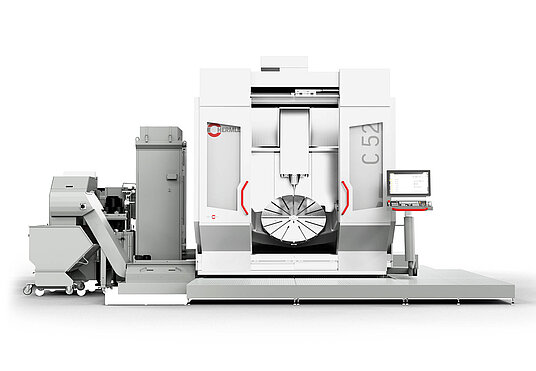

Machining centre C 52
The C 52 can machine workpieces weighing up to 2,000 kg in 5 axes. The optional MT technology enables simultaneous turning and milling.
- Traverse path:1000 x 1100 x 750 mm
- Body:Ø 1100 / H 810 mm
- Collision circle:Ø 1290 mm
- Vertical table clearance:max. 950 mm

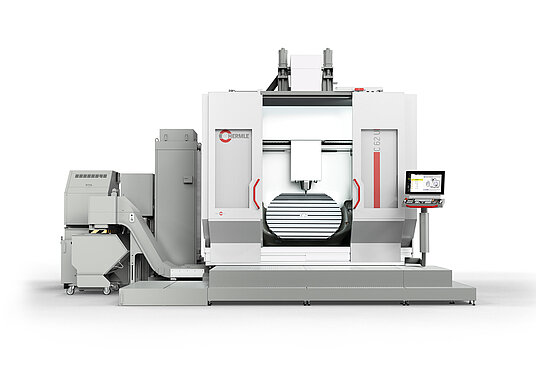

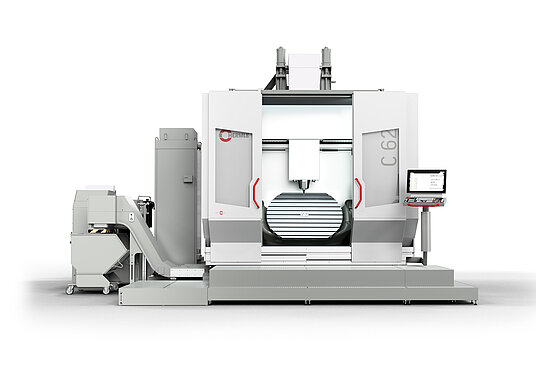

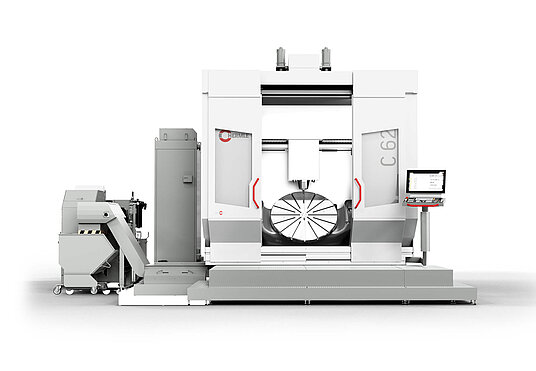

Machining centre C 62
As the premium model of the High-Performance Line, the C 62 effortlessly machines components measuring up 1200 mm in diameter.
- Traverse path:1200 x 1300 x 900 mm
- Body:Ø 1200 / H 900
- Collision circle:Ø 1400 mm
- Vertical table clearance:max. 1100 mm

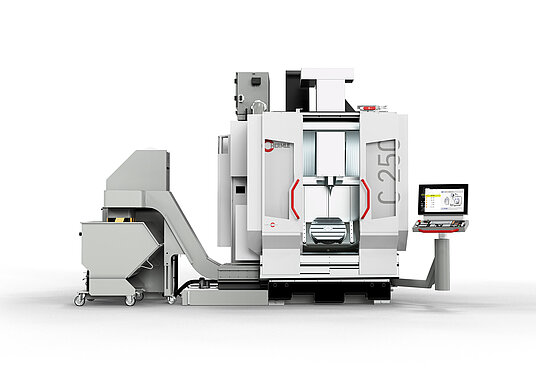

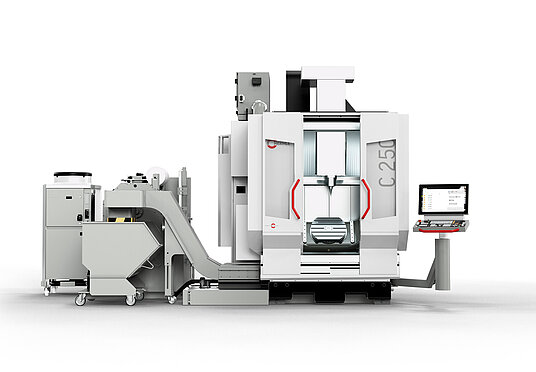

Machining centre C 250
As the entry-level model in the world of HERMLE, the C 250 Performance Line machining centre meets the highest standards of quality and durability.
- Störkreis:Ø 770 mm
- Verfahrweg:600 x 550 x 450 mm
- Maulweite:max. 550 mm
- Körper:Ø 450 / H 355 mm

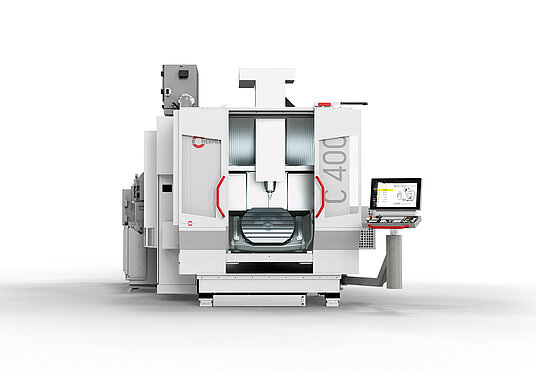

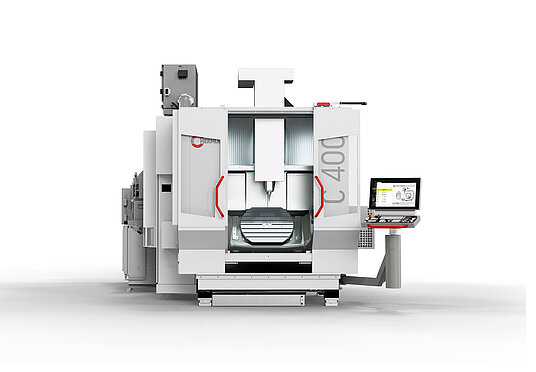

Machining centre C 400
Compared to the C 250 within the Performance Line, the C 400 machining centre enables the machining of larger components.
- Traverse path:850 x 700 x 500 mm
- Body:Ø 650 / H 500 mm
- Collision circle:Ø 885 mm
- Vertical table clearance:max. 625 mm

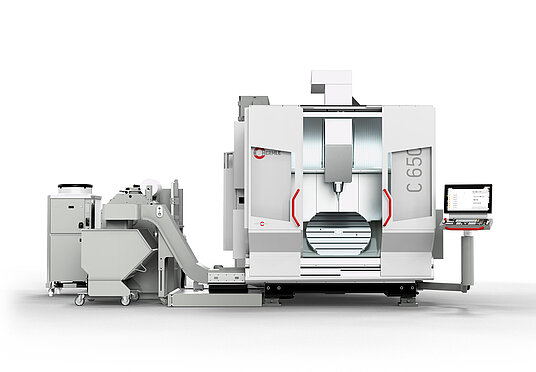

Machining centre C 650 GEN2
Sets new standards in the HERMLE Performance Line: The C 650 GEN2 is the new development offering the highest precision at maximum table load.
- Traverse path:1050 x 900 x 600 mm
- Body:Ø 900 / H 600 mm
- Collision circle:Ø 1100 mm
- Vertical table clearance:max. 775 mm
