Santa turns to the manufacturing experts at HERMLE, OPEN MIND, and FRAISA to save Christmas

Workforce shortages create opportunity for Santa to automate 5-axis production of more Santas.

It’s Christmas time and Santa is overwhelmed. So, what does he do? He turns to the manufacturing experts at HERMLE, OPEN MIND, and FRAISA to create more Santas. Together, the teams design, program, machine, and automate production of more Santas.

Using FRAISA tools, OPEN MIND’s innovative hyperMILL CAD/CAM solution, and HERMLE’s industry leading 5-axis machines with HEIDENHAIN controls, the teams manufacture the help that Santa desperately needs.

After reviewing the Santa demo piece, the real Santa is satisfied. Through a collaborative effort and with the best tools for the job, HERMLE, OPEN MIND, and FRAISA help Santa and save Christmas.

To learn more about this collaborative project, check out all the details below!

Click on the "Activate" link to view the content.
Please note that the data will be transmitted to Vimeo after activation.
More information

Activate

Santa Needs Help Project Video

Project Details

HERMLE Machining Centre C 400

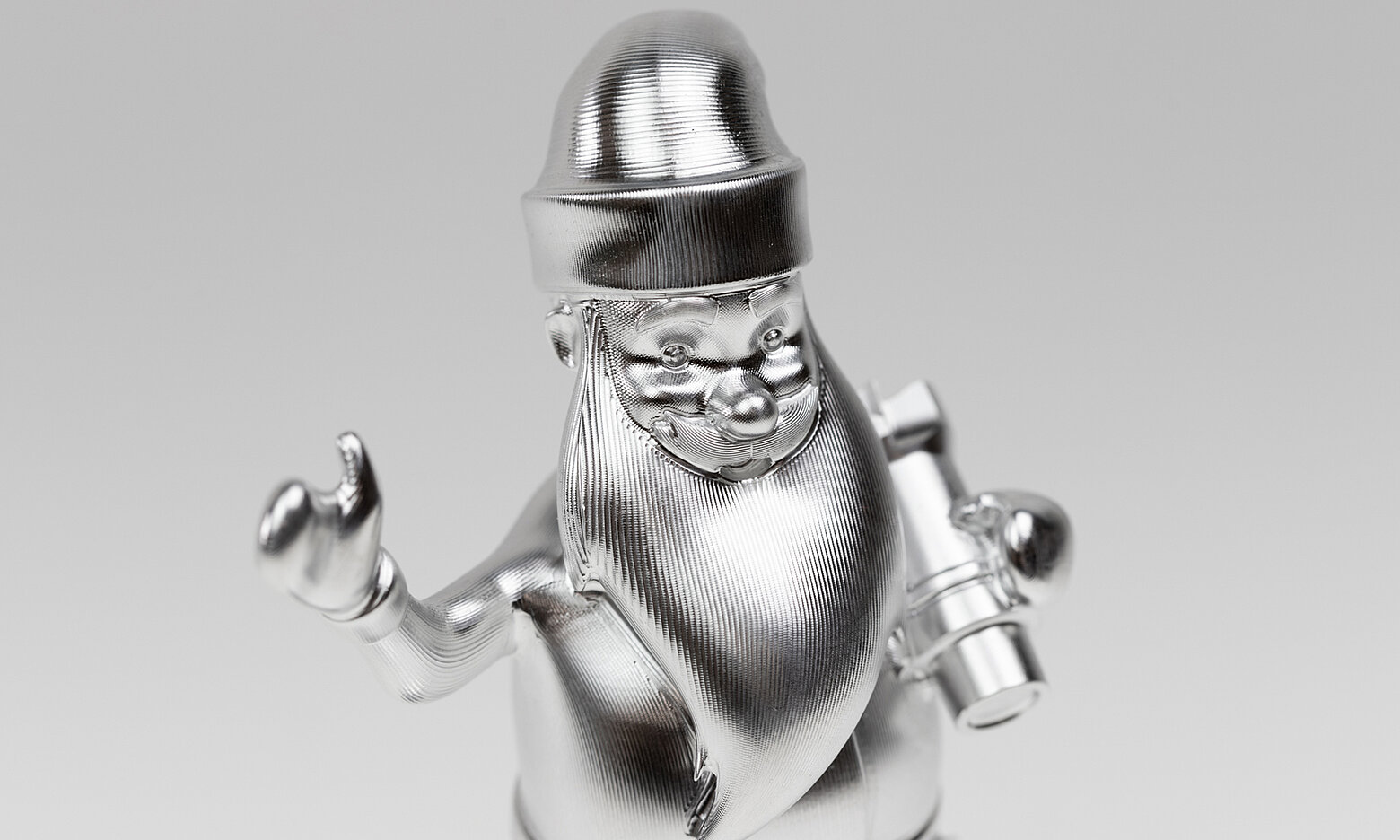

Workpiece

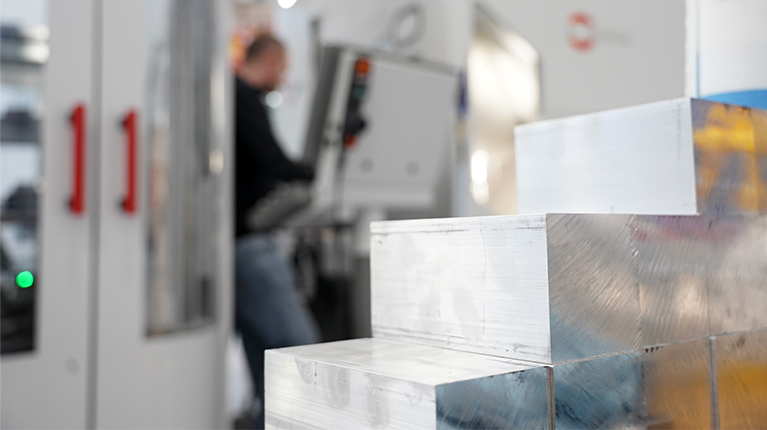

Material Machined: 6061 Aluminum
Material Dimension: 76.2mm x 76.2mm x 152.4mm (3in x 3in x 6in)
Finished Workpiece Dimension: Ø 72mm x 146mm
Approximate Machining Time: 4 hours

Workholding

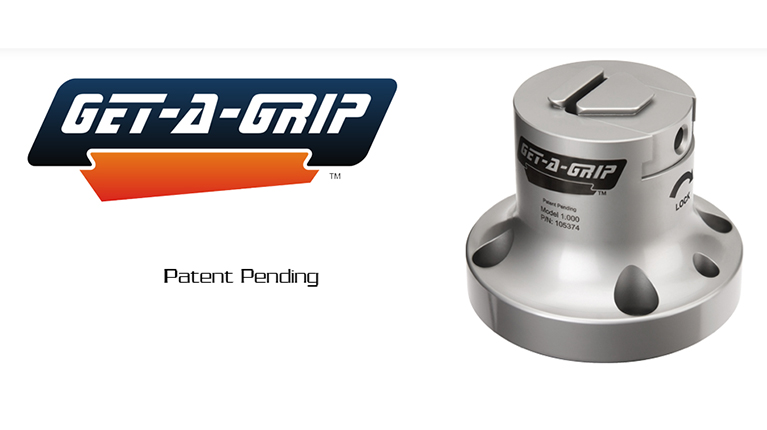

Fixture Supplier: AMT innnovations Get-A-Grip
Fixture Size: 77mm X 130mm x 76.2mm

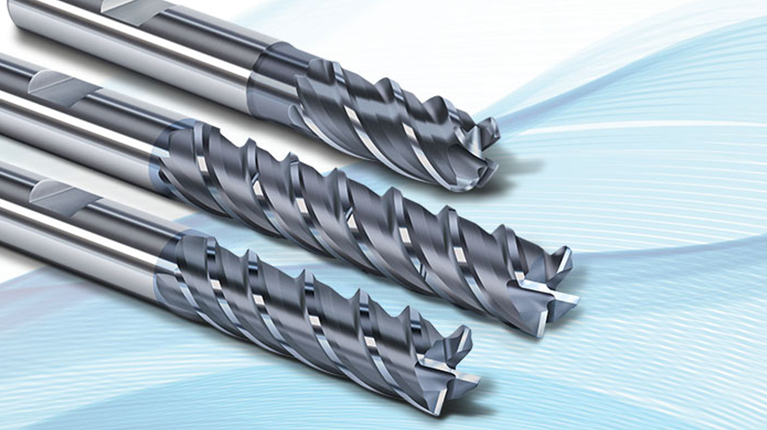

Tools

Amount of Tool Changes: Approx. 47
Tool #1: Touchprobe Renishaw OMP40 D6
Tool #2: Indexible Fraisa W00410404 D40R0.8
Tool #3: Ball D12 Fraisa_7550501
Tool #4: Ball D6 Fraisa_7550300
Tool #5: Ball D3 Fraisa_7550180
Tool #6: Ball D1.5 Fraisa_X6840120
Tool #7: Ball D0.5 Fraisa_X6836050
Tool #8: Drill D1.65 Fraisa_B570200165
Tool #9: Endmill D1.2 Fraisa_X6804108
Tool #10: ArCut Fraisa_8550140

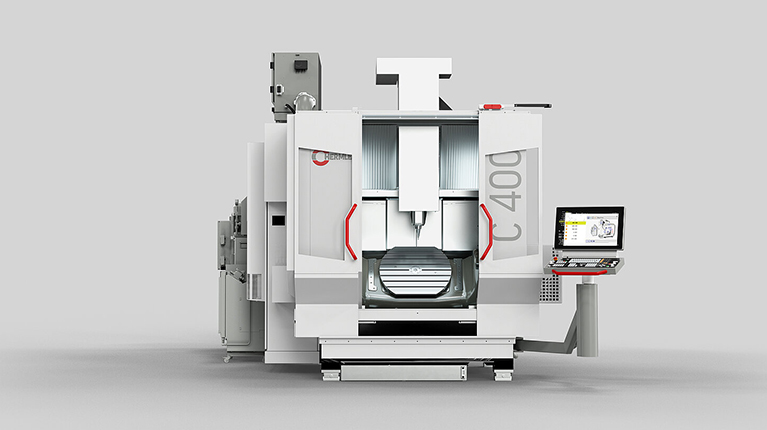

HERMLE C 400 Performance Line 5-Axis CNC Machine

Circle of Interference: Ø 885 mm
Travel Path: 850 x 700 x 500 mm
Mouth Width: max. 550 mm
Body: Ø 650 / H 500 mm
Rotational Speed: 15000/18000 1/min.
Rapid Traverse Linear X-Y-Z: 35 m/min.
Rigid Clamping Table: 1070 x 700 mm
Max. Table Load: 2000 kg

CAD/CAM Software

hyperMILL® by OPEN MIND Technologies

OPEN MIND Technologies develops state-of-the-art CAD/CAM solutions

Efficient and reliable: powerful strategies offer the optimum solution for every production situation
Consistent Workflows: trendsetting technologies for continuous digital process chains
Powerful automation technologies: Speed up and standardize programming processes
Exceptional customer service: fast and reliable service and support

CNC Controls

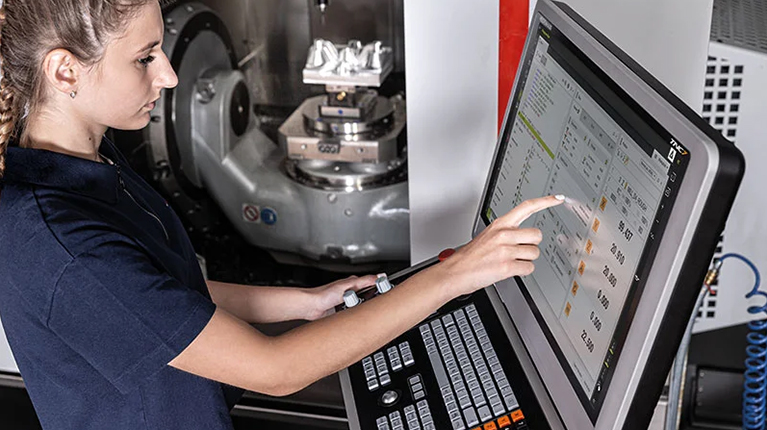

HEIDENHAIN TNC7 Contouring Control

Customizable user interface
Smart programming
Familiar surroundings
Task-focused support
Reliable processes
Predictive protection
Practical design

Enter Now to Win a Fully Machined Santa

Now through Christmas (December 25, 2024), you will have the chance to win a fully machined aluminum Santa, machined on the HERMLE C 400 machine, using hyperMILL® software with FRAISA tooling!

All you have to do is enter your information below and click submit. The winner will be chosen and announced on social media after Christmas.

Good luck!

Special Thanks to Our Amazing Partners

HERMLE USA would like to thank the companies and people who made this project so incredible. Without the outstanding professionalism and talent of the teams at Open Mind Technologies and FRAISA USA, Santa would still be working to make the Christmas magic happen.

HERMLE USA would also like to wish everyone a warm and happy holiday season, and a spectacular New Year. Cheers!
